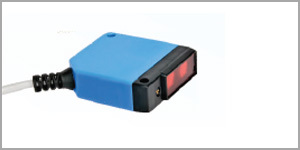

31 x 20 x 12 3 Wire DC Retro Reflective Sensor

Send Inquiry

Product Code : 09

Brand Name : Sai Tech

Price And Quantity

Minimum Order Quantity
1 or more Piece
Price
2000 INR/Piece

Product Specifications

Temperature Range
-25ºC- +55ºC Celsius (oC)
Protection Level
Short Circuit Protection

Max. Current
250mA Milliampere (mA)
Material
ABS

Max. Voltage
10-30 Volt DC Volt (V)
Operating Temperature
-25ºC- +55ºC Celsius (oC)

Size
31 X 20 X 12

Product Description

31 x 20 x 12 3 Wire DC Retro Reflective Sensor is a photoelectric sensor that contains emitter and receiver in a single housing & light emitted by emitter is reflected back to receiver by reflector. It is manufactured under the strict observation of adroit professionals using top notch quality components and innovative techniques. Having the capability to perform its detection task in a sophisticated manner, this 31 x 20 x 12 3 Wire DC Retro Reflective Sensor is highly demanded among the clients.

Specification :

Diameter	Q31
Sensing Mode	Retro-reflective
Sensing Range	4M
Housing Material	ABS
Max Load Current	250mA
Supply Voltage	10-30 Volt DC
Switching Frequency	250Hz
Response Time	1ms
Protecting category	IP67
Operating Temperature	-25oC- +55oC
Short Circuit Protection	Yes
Connecting Type	2mtrs, 3core pvc cable
DC 3 wire 10-30V NPN N.O.	PPQ31-R4N-C1V2
DC 3 wire 10-30V PNP N.C.	PPQ31-R4P-C1V2
