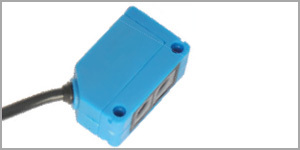

31 x 20 x 12 3 Wire DC Through Scan Sensor

31 x 20 x 12 3 Wire DC Through Scan Sensor

Product Details:

  • Protection Level IP67
  • Max. Current 250Ma Milliampere (mA)
  • Temperature Range -25ºC- +55ºC Celsius (oC)
  • Product Type Optical Sensor
  • Material Plastic
  • Max. Voltage 10-30Volts Volt (V)
  • Operating Temperature -25ºC- +55ºC Celsius (oC)
X

Price And Quantity

Product Specifications

  • Plastic
  • -25ºC- +55ºC Celsius (oC)
  • 31 X 20 X12
  • Optical Sensor
  • 250Ma Milliampere (mA)
  • 10-30Volts Volt (V)
  • -25ºC- +55ºC Celsius (oC)
  • 45 g Grams (g)
  • IP67

Trade Information

  • Cheque
  • 1-2 Days
  • 3 % extra

Product Description

We hold expertise in offering our clients a premium quality array of 31 x 20 x 12 3 Wire DC Through Scan Sensor. It is a non-contact type sensors based on infrared beam technology. It is used to detect objects in automatic processes or in this type scan sensor receiver and transmitter are housed separately. The sensor provides a signal when the beam is obstructed by the object. Besides, clients can avail the 31 x 20 x 12 3 Wire DC Through Scan Sensor from us at very nominal rates.

Specification :

Diameter

Q31

Sensing Mode

Through beam

Sensing Range

5M

Housing Material

Plastic

Max Load Current

250Ma

Supply Voltage

10-30 Volt DC

Switching Frequency

250Hz

Response Time

1ms

Operating Temperature

-25oC- +55oC

Short Circuit Protection

Yes

Connecting Type

2mtrs,3core pvc cable

Emitter

PPQ31-T5E-H1V2

NPN Light ON & Dark ON

PPQ31-T5N-C1V2

PNP Light ON & Dark ON

PPQ31-T5N-C1V2





SAI TECH CONTROLS
