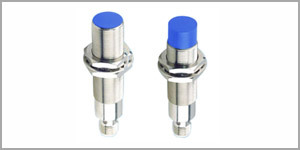

Capacitive Proximity Switches -M18 X 75-3Wire-DC-C

Send Inquiry

Request To Call Back

Capacitive Proximity Switches -M18 X 75-3Wire-DC-C

Get a Price/Quote

Capacitive Proximity Switches -M18 X 75-3Wire-DC-C Specification

Rated Voltage
10-30V DC

Finish Type
Nickel Plated

Response Time
<10ms

Circuit Type
NPN/PNP (Optional)

Mechanical Life
>10 million operations

Number of Module
Single

Automation Grade
Automatic

Temperature Range
Celsius (oC)

Max. Current
Milliampere (mA)

Product Type
Capacitive Proximity Switch

Material
Nickel Plated Brass

Insulation Resistance
100M (at 500VDC)

Contact Resistance
100m

Max. Voltage
Volt (V)

Operating Temperature
Celsius (oC)

Stoke
Non-contact

Weight
Approx. 50g

Mounting Type
Flush/Non-Flush

Current Rating
200mA

No Of Poles
3 Wire

Power Indicator
LED

Shock Resistance
500m/s², 3 times each in X, Y, Z directions

Short Circuit Protection
Yes

Vibration Resistance
10~55Hz, 1.5mm amplitude

Switching Frequency
200Hz

Output Type
N.O./N.C. (Optional)

Detection Distance
8mm (Standard)

Reverse Polarity Protection
Yes

Cable Length
2 meters

Capacitive Proximity Switches -M18 X 75-3Wire-DC-C Trade Information

Payment Terms
Cheque, Cash Advance (CA)

Delivery Time
7 Days

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
3 % EXTRA

Main Domestic Market
All India

About Capacitive Proximity Switches -M18 X 75-3Wire-DC-C

We are Manufacturer, Supplier, Exporter of Capacitive Proximity Switches - M18 X 75-3Wire-DC-C and our setup is situated in Pimpri Chinchwad near Pune, Maharashtra, India.

Specification

Diameter	M18
non-Flush Switching Distance	2-15mm
Housing Material	Nickel plated brass
With LED Without LED
Max Load Current	250mA
Supply Voltage	10-30 voltDC
Switching Frequency	100Hz
Response Time	1.5ms/1.5ms
Protecting category	IP67
Operating Temperature	-25 degree C- +70 degree C
Short Circuit Protection	Yes
Connecting Type	M12 connector
DC 3 wire 10-30V NPN N.O.	CBS-M1808N-A1ES4
DC 3 wire 10-30V NPN N.C.	CBS-M1808N-B1ES4
DC 3 wire 10-30V PNP N.O.	CBS-M1808P-A1ES4
DC 3 wire 10-30V PNP N.C.	CBS-M1808P-B1ES4

Reliable Contactless Detection

This sensor utilizes non-contact capacitive technology to detect a wide range of materials up to 8mm. Its robust design ensures high repeatability and immunity to wear, making it an excellent choice for demanding industrial environments.

Advanced Protection Features

Integrated short circuit and reverse polarity protection safeguards both the device and your automation system, helping to ensure long-term reliability and minimized downtime.

Versatile Installation and Output Options

With options for NPN/PNP circuit types, NO/NC output, and flush or non-flush mounting, the M18 X 75-3Wire-DC-C accommodates diverse system requirements and installation scenarios.

FAQs of Capacitive Proximity Switches -M18 X 75-3Wire-DC-C:

Q: How does the Capacitive Proximity Switch M18 X 75-3Wire-DC-C detect objects?

A: This sensor uses capacitive sensing to detect both conductive and non-conductive objects within an 8mm range, regardless of direct physical contact.

Q: What environments are suitable for installing this sensor?

A: Thanks to its nickel-plated brass construction, vibration, and shock resistance, this sensor is well-suited for harsh industrial environments with exposure to movement and mechanical stress.

Q: When should I choose the N.O./N.C. output option?

A: Select the Normally Open (N.O.) or Normally Closed (N.C.) output based on your circuits logic requirements. This flexibility allows easy integration into new or existing automation systems.

Q: Where can this proximity switch be mounted?

A: This sensor supports both flush and non-flush mounting, enabling installation on a variety of surfaces to fit different automated machine requirements.

Q: What is the typical process for wiring this sensor?

A: It features a 3-wire configuration (with a 2-meter cable) and supports both NPN and PNP outputs, allowing straightforward wiring for most standard control circuits.

Q: How does the sensors built-in LED power indicator aid in usage?

A: The LED indicator provides immediate visual confirmation of the sensors power status, simplifying installation and maintenance.

Q: What benefits does the sensors long mechanical life provide?

A: With a mechanical life of over 10 million operations, the sensor delivers reliable, long-lasting performance, reducing the need for frequent replacements and maintenance.
