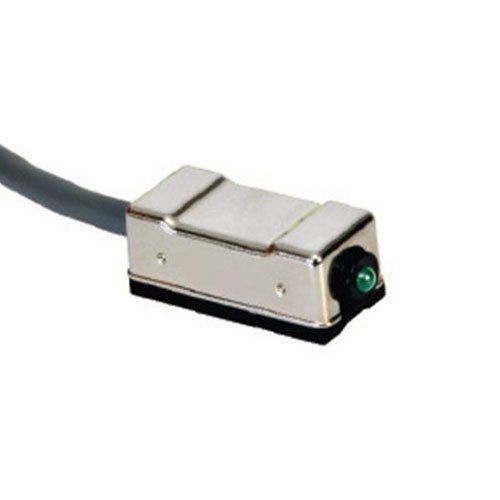

Magnetic Proximity Switch 13 X 11 X 29-2Wire-DC

Q: How do I install the 13 x 11 x 29-2Wire-DC Micro Limit Switch?

A: Installation involves panel mounting using the appropriate hardware. Connect the two-wire DC leads to your circuit according to the SPDT configuration, ensuring proper insulation and compliance with the maximum voltage and current ratings.

Q: What applications is this limit switch best suited for?

A: This switch is ideal for industrial automation and safety interlock systems, especially where high frequency, reliability, and environmental resistance are crucial, such as in machinery, conveyors, and automated lines.

Q: When should I consider replacing this switch?

A: Given its mechanical life of 1,000,000 operations and electrical endurance of 100,000 cycles, replacement is recommended upon nearing these operation counts or if contact resistance rises significantly, indicating wear.

Q: Where can this switch be used given its environmental ratings?

A: With an IP65 protection level and vibration resistance up to 55 Hz and 1.5 mm amplitude, it is suitable for both indoor and outdoor industrial environments where exposure to dust, water, and mechanical stress is likely.

Q: What is the process for wiring this switch into a control system?

A: Connect the two DC wires per the SPDT contact arrangement (common, normally open, and normally closed terminals) ensuring that all electrical parameters, such as voltage (up to 250V DC) and current (up to 10A), are not exceeded.

Q: How does using this switch benefit industrial automation systems?

A: It provides fast, precise switching (<10 ms response), durability under repeated use, and high reliability in harsh environments. Its robust design reduces downtime and maintenance costs, enhancing overall system efficiency.

Q: What compliance and safety standards does this switch meet?

A: The switch conforms to CE and RoHS standards, ensuring environmental safety, electrical protection, and reliable integration into regulated industrial environments.
