Proximity Sensors

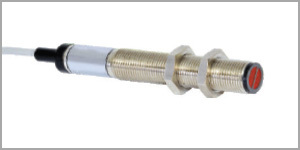

Name: M12 X 80-3Wire-DC
Brand: SAI TECH CONTROLS
Price: 1200.0 INR
Availability: InStock

Price 1200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Proximity Sensors Specification

Automation Grade
Automatic

Temperature Range
-25C to +70C Celsius (oC)

Circuit Type
NPN/PNP (User selectable)

Number of Module
Single

Protection Level
IP67

Rated Voltage
10-30V DC Volt (V)

Max. Current
200mA Megaampere ( MA)

Finish Type
Nickel Plated

Product Type
Inductive Proximity Sensor

Material
Brass Nickel Plated

Insulation Resistance
50M (at 500VDC)

Contact Resistance
100m Milliohm (m)

Max. Voltage
250V AC/DC Volt (V)

Operating Temperature
-25C to +70C Celsius (oC)

Stoke
80mm

Size
M12 x 80 mm

Color
Silver with Black Cap

Weight
Approx. 40g Grams (g)

Mounting Type
Flush Mounting

Current Rating
200mA

No Of Poles
3 (3-Wire)

Proximity Sensors Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash in Advance (CID)

Supply Ability
1000 Pieces Per Month

Delivery Time
7 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Standard

Main Domestic Market
All India

Certifications
Yes

About Proximity Sensors

We are Manufacturer, Supplier, Exporter of Diffuse Scan Sensors - M12 X 80-3Wire-DC, 31 X 20 X 12-3Wire-DC, M18 with M6 Extension, M18 X 55-3Wire-DC, 17 X 50 X 55-3Wire-DC and our setup is situated in Pimpri Chinchwad near Pune, Maharashtra, India.

Specification

Diameter	M12
Sensing Mode	Diffuse
Sensing Range	50mm
Housing Material	Brass
Max Load Current	250mA
Supply Voltage	10-30 Volt DC
Switching Frequency	100Hz
Response Time	1ms
Operating Temperature	-25 degree C- +55 degree C
Short Circuit Protection	Yes
Connecting Type	2mtrs,3core pvc cable
DC 3 wire 10-30V NPN N.O.	STO-M12NO-DS
DC 3 wire 10-30V NPN N.C.	STO-M12NC-DS
DC 3 wire 10-30V PNP N.O.	STO-M12PO-DS
DC 3 wire 10-30V PNP N.C.	STO-M12PC-DS

Versatile Output Options

This sensor provides the flexibility of user-selectable NPN or PNP output, as well as both Normally Open (NO) and Normally Closed (NC) output types. This versatility ensures seamless integration into various control systems, accommodating different wiring standards and logic requirements.

Durable Construction & Longevity

Built with brass nickel-plated housing and rated IP67, the M12 X 80-3Wire-DC ensures long-term reliability even in demanding industrial environments. Its ability to withstand considerable vibration, shock, and wide temperature ranges contributes to a mechanical life exceeding one million operations.

Precision Sensing Performance

Offering a precise sensing distance of 4mm 10% and a swift response time of less than 1ms, this sensor is optimized for fast and accurate object detection. The robust frequency of 500Hz supports high-speed applications without compromise on accuracy.

FAQ's of M12 X 80-3Wire-DC:

Q: How is the M12 X 80-3Wire-DC sensor installed in automation setups?

A: The sensor features a flush mounting style with a standard M12 x 80mm body, and it is connected using a durable 2-meter PVC cable. Installation is straightforward: secure the sensor using compatible mounting brackets and wire it according to your control system's specifications (NPN or PNP, NO or NC as needed).

Q: What types of objects can this sensor detect, and at what distance?

A: The M12 X 80-3Wire-DC is ideal for detecting metallic objects within a sensing distance of 4mm 10%. Its operating principle is based on inductive proximity, which means it is unaffected by the color, texture, or surface finish of the target metal.

Q: When is it beneficial to use both NO and NC outputs?

A: Having both Normally Open (NO) and Normally Closed (NC) outputs provides flexibility for systems that require different response behaviors, enabling quick adaptation for fail-safe or control-specific designs without replacing hardware.

Q: Where is this sensor most effectively used?

A: The sensor's IP67 rating, shock and vibration resistance, and wide operating temperature range make it suitable for use in automation, robotics, conveyor systems, and harsh industrial environments where durability and reliability are paramount.

Q: What protections are built into the M12 X 80-3Wire-DC?

A: This model has integrated reverse polarity and short circuit protections, ensuring safe operation and safeguarding connected equipment against wiring mishaps or temporary faults.

Q: How does the user select the output circuit type (NPN or PNP)?

A: The sensor is designed for user selectability between NPN and PNP output types. Refer to the manufacturer's wiring guide for correct connections, enabling seamless adaptation to diverse PLC and automation input requirements.

Q: What are the main benefits of using this sensor in automated systems?

A: Key benefits include high reliability, rapid response (<1ms), extensive mechanical life (>1,000,000 cycles), resistance to environmental stresses, and the flexible output configuration. These ensure minimal maintenance and optimal performance in automated production scenarios.
