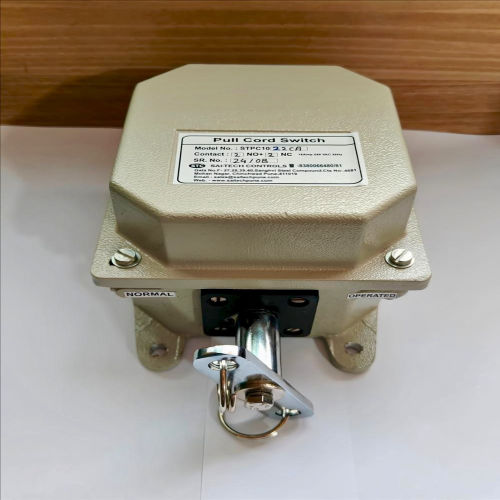

Send InquiryPull Cord Switch
Price 1725.0 INR/ Unit
MOQ : 5 Units, Unit
Pull Cord Switch Specification
- Usage
- Rope Way ,cement industries , sugar industries
- Voltage
- 230 VAC Volt (v)
- Material
- Cast Aluminum with powder coating.
Pull Cord Switch Trade Information
- Minimum Order Quantity
- 5 Units, Unit
- Payment Terms
- Cheque
- Packaging Details
- 3 % Extra
- Main Export Market(s)
- Asia
- Main Domestic Market
- All India
About Pull Cord Switch
ORDERING CODE :
- STPC-10 - 11 - 1NO + 1NC - CA
- STPC-10 - 22 - 2NO + 2NC - CA
ADD ON :
- JB - JUNCTION BOX.

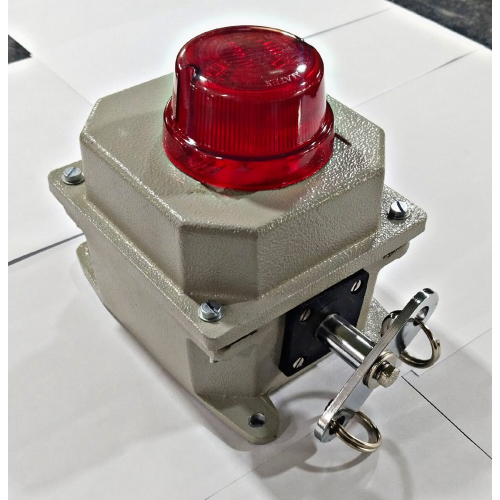

- L - INDICATION LAMP.
- MF - MECHANICAL FLAG.
ENCLOSURE :
- CA - CAST AL.
- CI - CAST IRON.
- IP - IND. POLYMER.
- FLP - FLAME PROOF.
Features :
- Heavy duty enclosures for dusty environment with IP 65
- Toggle type snap action
- Cast Al / Cast Iron / Ind. Polymer / Flame Proof
- Retaining type screws
- Heavy duty contacts 10Amp@110 / 230 / 500 volt Ac
- Contact combination-1NO+NC / 2No+2NC
- Manual Reset
- Models available with Junction box/Indi. Lamp / M.Flag Addressable Type
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Pull Cord Switch Category

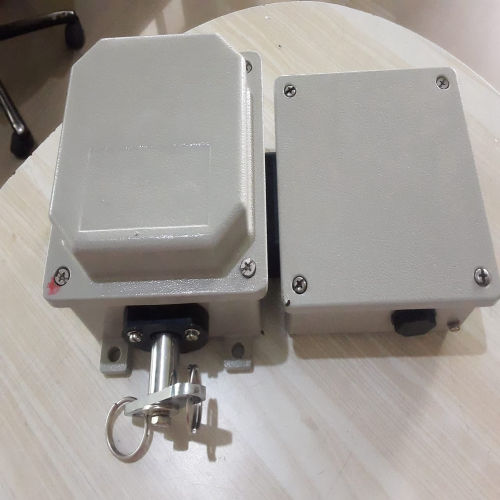

Pull Cord Switch With Junction Box
Price 2600.0 INR / Unit
Minimum Order Quantity : 5 Units
Voltage : Suitable for 230V AC systems
Dimension (L*W*H) : Approx. 180 mm x 110 mm x 90 mm
Product Type : Pull Cord Switch with Junction Box
Power : Operates on standard electrical wiring, no independent power supply required

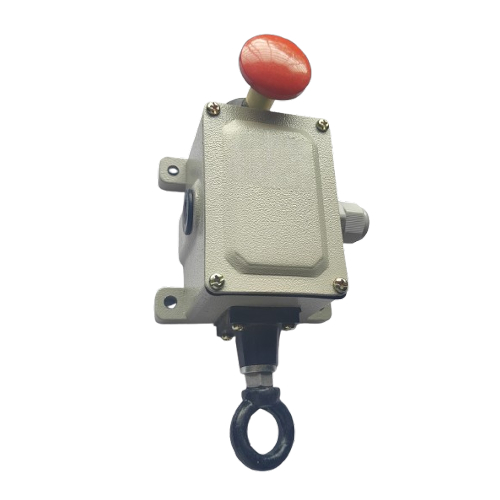

Reset with Push Button TYPE
Price 2525.0 INR / Unit
Minimum Order Quantity : 1 Unit
Voltage : 250V AC Max.
Dimension (L*W*H) : 80mm x 40mm x 38mm
Product Type : Reset Switch with Push Button
Power : Manual Operation
