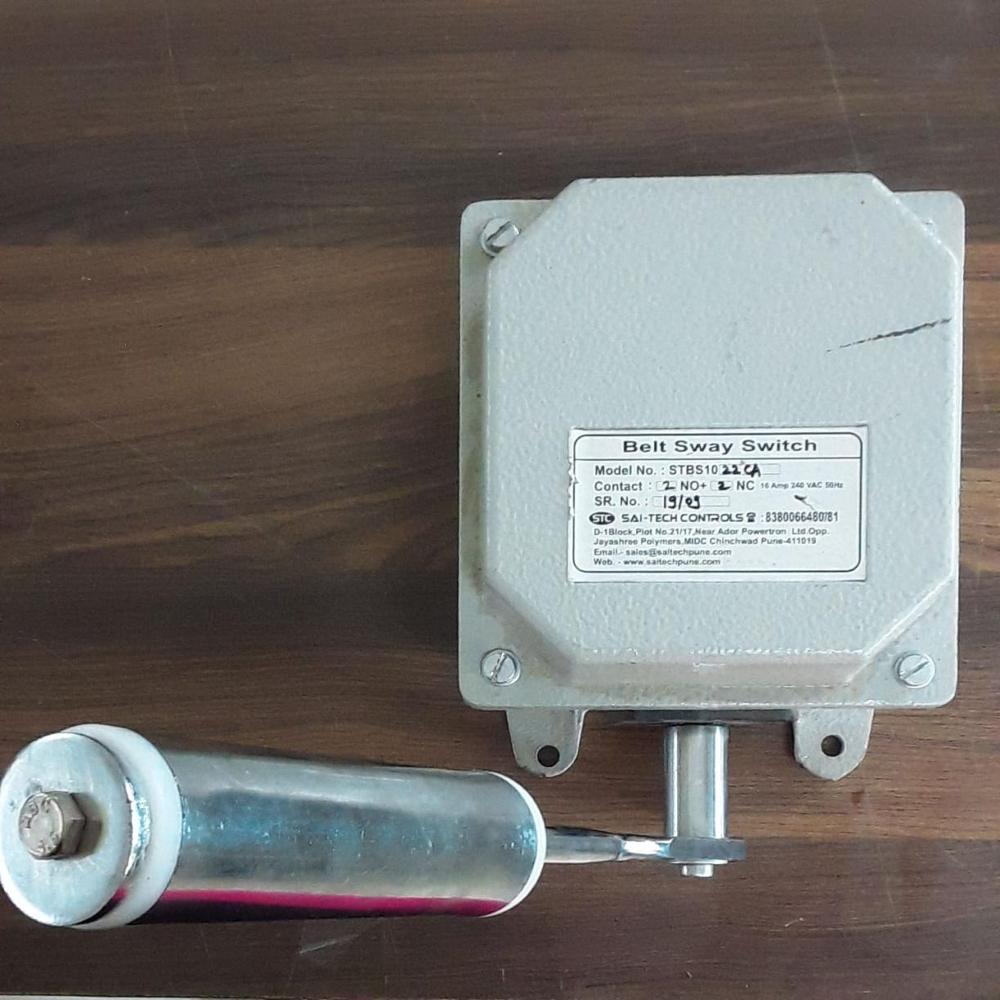

Conveyor Belt Sway Switch

Features :

• Heavy duty enclosures for dusty environment with IP 65
• Ball/bush bearing options for Roller & Cam Shaft
• Cast Al/Cast Iron/Ind. Polymer/Flame Proof
• Contact combination 1N0+1NC/ 2N0+2NC
• Retaining type screws
• Models available with Junction box/Indicating Lamp
• Robust spring to absorb impact from belt
• Heavy duty contacts 10 AMP @ 110/240/500 Volt As
• Wide over travel of the roller is permissible without damaging Switch element

ORDERING CODE :

• STBS - 10 - 11 - 1NO + 1NC - CA
• STBS - 10 - 22 - 2NO + 2NC - CA

ADD ON :

• J B - Junction Box.
• L - Indication Lamp.
• M F - Mechanical Flag.
• D X - SS Roller With Ball Bearing.

Enclosure :

• C A - Cast AI.
• C I - Cast Iron.
• I P - Ind. Polymer.
• F L P - Flame Proof.
