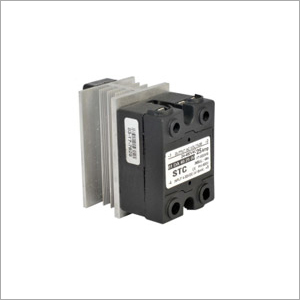

Solid State Relay -DC-AC-25 Amp with Heatsink

Solid State Relay -DC-AC-25 Amp with Heatsink
Solid State Relay -DC-AC-25 Amp with Heatsink
Send Inquiry
Product Code : 26
Brand Name : Sai-Tech
Price And Quantity
  • Minimum Order Quantity
  • 1 Or More Pair
  • Price
  • 550/- INR/Piece
Product Specifications
  • Application
  • Heater and switching Process
  • Protection Level
  • Other
  • Rated Voltage
  • 240 Volt (V)
  • Color
  • Blue
  • Warranty
  • 1 year
Product Description

Single Phase with Heat Sink Solid State Relays And Module is an electrically operated switch that provides electrical isolation between the two or even more electric circuits.. It is designed and manufactured using quality assured range of basic materials which are procured from reliable vendors of the industry. This  Single Phase with Heat Sink Solid State Relays And Module can function for countless number of years without any error owing to which are appreciated in the market.

Product Details :

  • Analog SSR with Input 0 -10 VDC or 4 - 20 mA
  • Available in Single phase & 3 Phase model upto 90 AMP
  • Sai Tech Control Manufacture SSRs from current rating 2A to 150 Amp.
  • Output Voltage : 240 v or 600 VAC.
  • DC output relays with rating 110 VDC 10 Amp. to 1000 Amp.

Input Control

Specification

Min.

Max

Units

Control Voltage Range

3
75

32
240

VDC
VAC

Input Current -400C < ta < 800 C


20

mA

Turn off Voltage- 30 C <ta . < 80 C


1
4

VDC
VAC

Turn off Voltage- 40 C < ta . < 80 C

75

260

VAC

Isolation ( Input to Output, Input to case Output to case)


10

OHMS

Output (Load)

Specification

Min.

Max

Units

Output Current rating with heat sink

0.05

10 25
15, 40, 60

AMPS
RMS

Load Voltage Rating

25

480

VAC (RMS)

Frequency rang

47

70

Hz

Surge Current rating




( 20ms ) at 40 amp type

425

10

AMP

Over voltage rating (Transisent Peak)

1200


V Peak

Trade Information
  • Payment Terms
  • Cheque
  • Delivery Time
  • 2-3 Days
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Packaging Details
  • 3 % Extra
  • Main Domestic Market
  • All India
