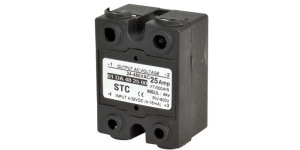

Single phase DC-AC-25Amp

Name: Single phase DC-AC-25Amp
Brand: SAI TECH CONTROLS
Price: 300.0 INR
Availability: InStock

Price 300.0 INR/ units

Get a Price/Quote

Single phase DC-AC-25Amp Specification

Mounting Type
Panel Mount

Shape
Rectangular

Connector Type
Screw Terminal

Surface Finish
Powder Coated

Power Factor
>0.98

Overheating Protection
YES

Feature
Compact Design, High Efficiency, Fan Cooling

IP Rating
IP20

Humidity %
0% - 90% (Non-Condensing)

Efficiency
>90%

Insulation Material
ABS/PC Composite

Operating Temperature
-10C to +50C

Product Type
DC-AC Inverter

Application
Industrial, Home Automation, Motor Drive

Protection Level
Overload, Short Circuit, Overheat

Frequency (MHz)
50/60

Rated Voltage
230V AC Output

Energy Consumption
Low

Output Type
AC

Color
Silver

Dimension (L*W*H)
180mm x 110mm x 70mm

Weight
1.5 kg

Input Voltage
12V/24V/48V DC (Model Specific)

Phase
Single Phase

Size
Compact

Connection Type
Terminal Block

No Of Poles
Single

Material
Aluminum Alloy

About Single phase DC-AC-25Amp

Single Phase with Heat Sink Solid State Relays And Module is an electrically operated switch that provides electrical isolation between the two or even more electric circuits.. It is designed and manufactured using quality assured range of basic materials which are procured from reliable vendors of the industry. This Single Phase with Heat Sink Solid State Relays And Module can function for countless number of years without any error owing to which are appreciated in the market.

Product Details :

Analog SSR with Input 0 -10 VDC or 4 - 20 mA
Available in Single phase & 3 Phase model upto 150 AMP
Sai Tech Control Manufacture SSRs from current rating 2A to 150 Amp.
Output Voltage : 240 VAC or 600 VAC.
DC output relays with rating 110 VDC 10 Amp. to 1000 Amp.

Input Control

Specification	Min.	Max	Units
Control Voltage Range	3 75	32 240	VDC VAC
Input Current -400C < ta < 800 C		20	mA
Turn off Voltage- 30 C		1 4	VDC VAC
Turn off Voltage- 40 C < ta . < 80 C	75	260	VAC
Isolation ( Input to Output, Input to case Output to case)		10	OHMS

Output (Load)

Specification	Min.	Max	Units
Output Current rating with heat sink	0.05	10 25 15, 40, 60	AMPS RMS
Load Voltage Rating	25	480	VAC (RMS)
Frequency rang	47	70	Hz
Surge Current rating
( 20ms ) at 40 amp type	425	10	AMP
Over voltage rating (Transisent Peak)	1200		V Peak

High Performance & Efficiency

With a power factor greater than 0.98 and an efficiency exceeding 90%, this inverter minimizes energy consumption while delivering reliable power. The pure sine wave output ensures safe and stable operation for sensitive electronics and motor drives alike.

Durable Construction & Compact Design

Encased in a rugged, powder-coated rectangular metal enclosure, this inverter withstands demanding environments. Its compact dimensions (180mm x 110mm x 70mm) and panel mount feature allow convenient integration into tight installations.

Comprehensive Protection Features

Protection against overload, short circuit, and overheating is provided for peace of mind. The soft start function avoids sudden power surges, while built-in fan cooling maintains optimal operating temperature even under heavy loads.

FAQ's of Single phase DC-AC-25Amp:

Q: How do I install the Single Phase DC-AC-25Amp inverter in my setup?

A: Installation is straightforward due to its compact size and panel-mount design. Use the terminal block connectors and screw terminals for secure connections. Follow the supplied instructions to ensure proper wiring and mounting, making sure the inverter is placed in a well-ventilated area.

Q: What benefits does the pure sine wave output provide for my devices?

A: Pure sine wave output guarantees stable and clean AC power, crucial for sensitive electronics and motor drives. It minimizes noise, electromagnetic interference, and risk of equipment malfunction, resulting in smoother, safer, and longer-lasting operation.

Q: When should I use the built-in fan cooling feature?

A: The built-in fan operates automatically during high-load scenarios to maintain safe operating temperatures. This feature prevents overheating, ensuring sustained performance and reducing the risk of thermal-related failures.

Q: Where can the inverter be applied effectively?

A: This inverter suits industrial settings, home automation, and motor drive applications. Its robust protection mechanisms and compact, panel-mountable construction allow seamless integration into factory panels, residential control systems, and equipment cabinets.

Q: What process ensures protection against overload and short circuits?

A: The inverter utilizes advanced circuitry to detect overload and short circuit conditions rapidly. Protection is immediate, shutting down output to prevent damage to both the inverter and connected devices, assuring operational safety.

Q: How does the soft start function benefit my equipment?

A: Soft start gradually ramps up the output voltage during startup, avoiding sudden power surges. This protects connected appliances from electrical stress and enhances their lifespan by reducing wear and tear.
